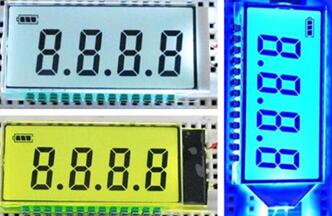

Segment LCD13PIN TN Positive 4-Digits Segment LCD Backlight
Mouse over to zoom in
- Product 16/36
-
Display Content: 4 digits 8 word
Outline Dimension: 43.0 × 22.0 × 2.8mm
Active Area: 40.0*17.0mm
Viewing Direction: 6:00 O'clock
Backlight: White, Yellow Green
Working voltage: 3V
Operating Temperature: 0 ℃ ~ 50 ℃
Storage Temperature: -10 ℃ ~ 60 ℃
Driving Mode: 1/4Duty 1/3Bias
Display Mode: TN, Positive
Connection: metal pin
PIN NO.: 10P
Polarizer Mode: reflection/ semi-penetration
