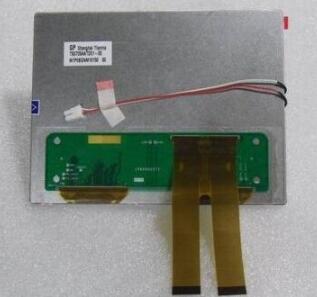

TFT LCDTIANMA 7 inch TFT LCD Screen TS070SAATD01-00
Mouse over to zoom in
- Product 29/374
-
Panel Brand: TIANMA
Panel Model: TS070SAATD01-00
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 200 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 25 (Typ.) (Tr+Td) (ms)
Viewing Angle: 65/65/45/65 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 3S6P WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/10.0/15.0/-10V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel
