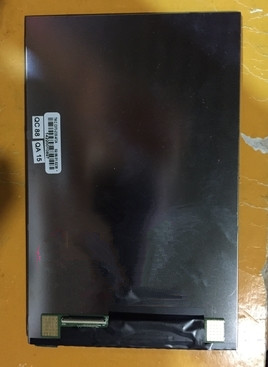

TFT LCDINNOLUX 7" LCD N070ICN-PB1 TM.C.C070-2330-872A
Mouse over to zoom in
- Product 30/374
-
Panel Brand: INNOLUX
Panel Model: N070ICN-PB1
Panel Type: a-Si TFT-LCD, CELL
Panel Size: 7.0 inch
Resolution: 800(RGB)*1280, WXGA
Display Mode: IPS, Normally Black, Transmissive
Active Area: 94.2*150.72 mm
Outline: 101.5*159.65*1.07 mm
Surface: Hard coating
Brightness:
Contrast Ratio: 400:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 11/9 (Typ.) (Tr/Td)
Viewing Angle: 89/89/89/89 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type:
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.3/5.8/-5.8V (Typ.) (VDDIN/AVDD/AVEE)
Application: All Pad, Tablet Panel
