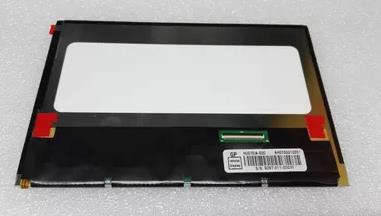

TFT LCDINNOLUX 7.0 inch TFT LCD HJ070IA-02C 1280*800
Mouse over to zoom in
- Product 31/374
-
Panel Brand: CHIMEI INNOLUX
Panel Model: HJ070IA-02C
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: IPS, Normally Black, Transmissive
Active Area: 149.76*93.6 mm
Outline:
Surface: Glare (Haze 0%), Hard coating (3H)
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 15/20 (Typ.) (Tr/Td)
Viewing Angle: 89/89/89/89 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED Without Driver
Signal Interface: LVDS (1 ch, 8-bit), 40 PINS
Input Voltage: 3.3/9.74/22.7/-8V (Typ.) (VDD/AVDD/VGH/VGL)
Application: All MID UMPC Panel, All Pad, Tablet Panel
