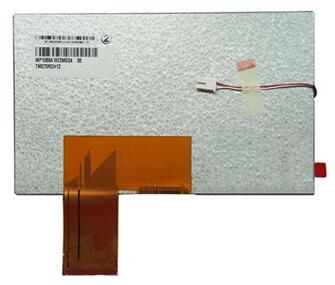

TFT LCDTIANMA 7.0 inch LCD Screen TM070RDH12 800*480
Mouse over to zoom in
- Product 42/374
-
Panel Brand: TIANMA
Panel Model: TM070RDH12
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit+ Dithering)
Response Rime: 20 (Typ.) (Tr+Td) (ms)
Viewing Angle: 70/70/60/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S7P WLED
Signal Interface: Parallel RGB (1 ch, 6/8-bit)
Input Voltage: 3.3/10.6/16.0/-7.0V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
