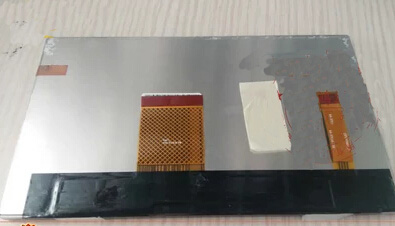

TFT LCDAUO 7.0 inch TFT LCD C070VTN01.0 WVGA 800*480
Mouse over to zoom in
- Product 43/374
-
Panel Brand: AUO
Panel Model: C070VTN01.0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Active Area: 152.4*91.44 mm
Outline: 169*103.45*6.2 mm
Surface: Antiglare, Hard coating (3H)
Brightness: 750 cd/m2 (Typ.)
Contrast Ratio: 600:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 12/18 (Typ.) (Tr/Td)
Viewing Angle: 65/65/50/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 8S2P WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/11.0/20.0/-10.0V (Typ.) (VDDIO/AVDD/VGH/VGL)
Application: All Car Display Panel
