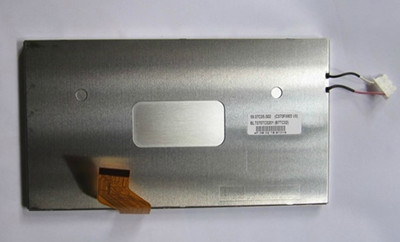

TFT LCDAUO 7 inch TFT LCD Panel C070FW03 V0 480*234
Mouse over to zoom in
- Product 223/374
-
Panel Brand: AUO
Panel Model: C070FW03 V0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution:480(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare (Haze 25%)
Brightness: 475 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color:
Response Rime: 15/20 (Typ.) (Tr/Td)
Viewing Angle: 60/60/45/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 1 pcs CCFL
Signal Interface: TFT Specific Analog RGB
Input Voltage: 5/5/15/-10V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
