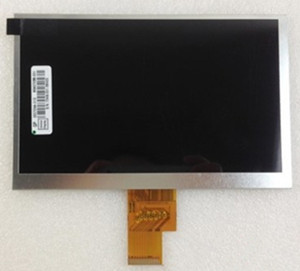

TFT LCD7.0 inch TFT LCD Screen HJ070NA-13B 1024*600
Mouse over to zoom in
- Product 222/374
-
Panel Brand: CHIMEI INNOLUX
Panel Model: HJ070NA-13B
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface:
Brightness: 300 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit + Hi-FRC)
Response Rime: 10/15 (Typ.) (Tr/Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3/11/20/-6.8V (Typ.) (DVDD/AVDD/VGH/VGL)
RoHS
Application: All MP4 PMP Panel / All MID UMPC Panel / All Pad, Tablet Panel
