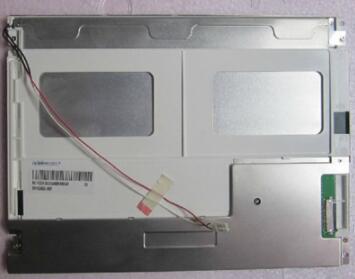

TFT LCDTIANMA 10.4 inch IPC TFT LCD Screen TM104SDH02
Mouse over to zoom in
- Product 27/38
-
Panel Brand: TIANMA
Panel Model: TM104SDH02
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.4 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 8-bit)
Response Rime: 10/15 (Typ.) (Tr+Td)
Viewing Angle: 70/70/60/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5S8P WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3/V
RoHS
Application: All Industrial Application Panel
