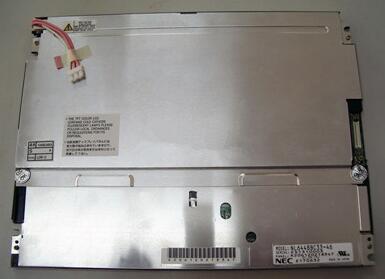

TFT LCDNEC 10.4 inch TFT LCD NL6448BC33-46 VGA 640*480
Mouse over to zoom in
- Product 28/38
-
Panel Brand:
Panel Model: NL6448BC33-46
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.4 inch
Resolution: 640(RGB)*480, VGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 6/40 (Typ.) (Tr/Td)
Viewing Angle: 70/70/45/55 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 2 pcs CCFL
Signal Interface: CMOS (1 ch, 6-bit)
Input Voltage: 3.3/5.0V (Typ.)
RoHS
Application: All Industrial Application Panel
