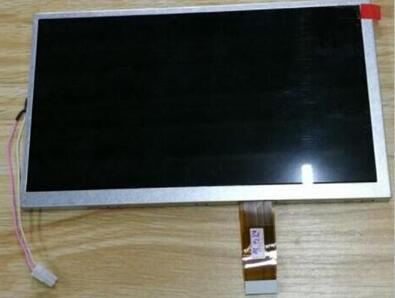

TFT LCDINNOLUX 7.0 inch TFT LCD Panel AT070TN01 V.2
Mouse over to zoom in
- Product 70/374
-
Panel Brand: INNOLUX
Panel Model: AT070TN01 V.2
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 480(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 150:1 (Typ.)
Display Color: Full Color
Response Rime: 15/20 (Typ.) (Tr/Td) (ms)
Viewing Angle: 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 1 pcs CCFL
Signal Interface: TFT Specific Analog RGB
Input Voltage: 5.0/5.0/15.0/-10.0V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
