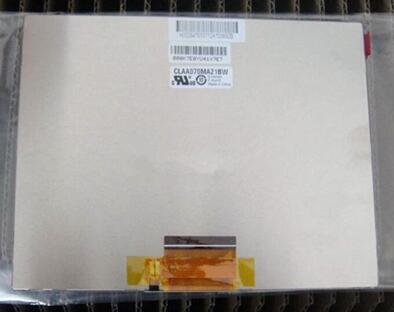

TFT LCDCPT 7.0 inch 60P TFT LCD CLAA070MA21BW 800*600
Mouse over to zoom in
- Product 71/374
-
Panel Brand: CPT
Panel Model: CLAA070MA21BW
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Brightness: 215 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.2M (6-bit+FRC)
Response Rime: 20 (Typ.)(Tr+Td)
Viewing Angle: 50/70/70/70 (Typ.)
Frequency: /
Lamp Type: 2S7P WLED
Signal Interface: TTL (1 ch, 8-bit)
Input Voltage: 3.3/9.6/18/-6V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Surface: /
Application: ALL Digital Photo Frame Panel, All Portable DVD Player Panel
