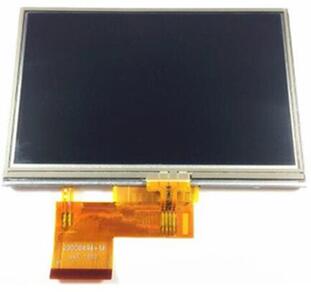

TFT LCDINNOLUX 4.3 inch TFT LCD ED043CA-01D 480*272
Mouse over to zoom in
- Product 91/186
-
Panel Brand: CHIMEI INNOLUX
Panel Model: ED043CA-01D
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 4.3 inch
Resolution: 480(RGB)*272, WQVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 10/15 (Typ.) (Tr+Td) (ms)
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 9S1P WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)+SPI
Input Voltage: 1.8/3.3V (Typ.) (DVDD/AVDD)
RoHS
Application: All Portable Navigation Device Panel, All Pocket TV Panel
