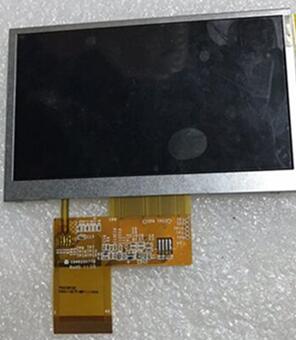

TFT LCDTIANMA 4.3 inch 40P TFT LCD TM043NFH02 No TP
Mouse over to zoom in
- Product 90/186
-
Brand: TIANMA
Model: TM043NFH02
Diagonal Size: 4.3 inch
Type: CELL a-Si TFT-LCD
Pixel Format: 480(RGB)×272 WQVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Luminance: 0 cd/m²
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/70/50 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 50% (CIE1931)
Transmissivty: 6.1% (Typ.)
Refresh Rate: 60Hz
Touch Panel: Without
Backlight: No B/L, No Driver
Interface Type: Parallel RGB (1 ch, 8-bit), FPC, 40Pins
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel
