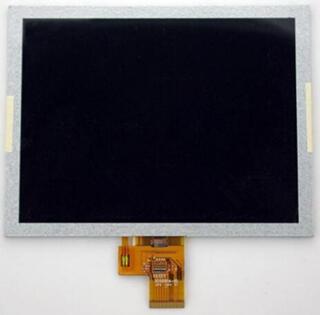

TFT LCDINNOLUX 8.0 inch HD TFT LCD EJ080NA-04C 1024*768
Mouse over to zoom in
- Product 78/121
-
Panel Brand: CHIMEI INNOLUX
Panel Model: EJ080NA-04C
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 1024(RGB)*768, XGA
Display Mode: TN, Normally White, Transmissive
Surface: Harding coating
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Response Rime: 6/14 (Typ.) (Tr/Td) (ms)
Viewing Angle: 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3/11.5/22/-7V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel
