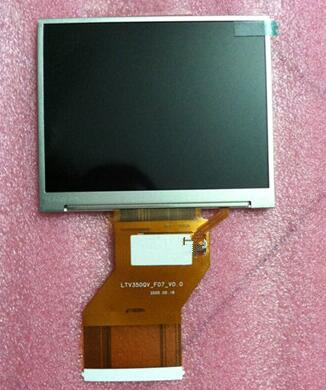

TFT LCDSAMSUNG 3.5 inch TFT LCD LTV350QV-F07 320*240
Mouse over to zoom in
- Product 113/203
-
Panel Brand: SAMSUNG
Panel Model: LTV350QV-F07
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: PVA, Normally Black, TMR
Surface: /
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 25 (Typ.)(Tr+Td)
Viewing Angle: 80/80/80/80 (Typ.) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S1P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)+SPI
Input Voltage: 3.2/3.2V (Typ.) (VCC/VCI)
RoHS
Application: All Digital Still Camera Panel, All Digital Video Camera Panel, All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel
