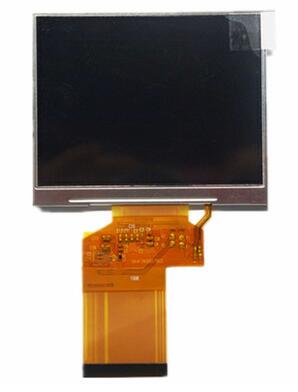

TFT LCDChiHsin 3.5 inch TFT LCD LQ035NC121 320*240
Mouse over to zoom in
- Product 114/203
-
Panel Brand: ChiHsin
Panel Model: LQ035NC121
Panel Type: CELL, a-Si TFT-LCD
Panel Size: 3.5 inch
Resolution:320(RGB)*240, QVGA
Display Mode: TN, Normally White, Transmissive
Active Area: 70.08*52.56mm
Outline: /
Voltage Supply: 3.3V (Typ.)(VCC)
Brightness: 0 cd/m²
Contrast Ratio: 400 : 1 (Typ.) (TM)
Display Color: 16.7M 60% (CIE1931)
Response Rime: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 55/55/45/50 (Typ.) (CR≥10) (L/R/U/D)
Transmissivity: 7.4% (Typ.)(with Polarizer)
Lamp Type: WLED, 330K hours
Signal Interface: TTL (1 ch, 6-bit)
Configuration: Parallel RGB (1 ch, 8-bit) + SPI , FPC , 54 pins
Application: All Digital Still Camera Panel, All Digital Video Camera Panel, All Portable Navigation Device Panel
