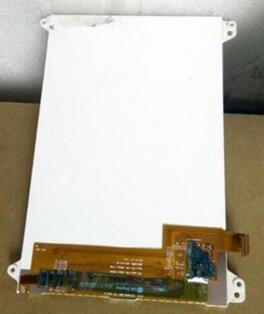

TFT LCDLG IPS 7 inch HD TFT LCD LD070WX6-SM01 800*1280
Mouse over to zoom in
- Product 150/374
-
Panel Brand: LG Display
Panel Model: LD070WX6-SM01
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*1280, WXGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Antireflection
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 50 (Max.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5S5P WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.0/3.7V (Typ.) (VCC/V SYS)
RoHS
Application: All Pad Panel
