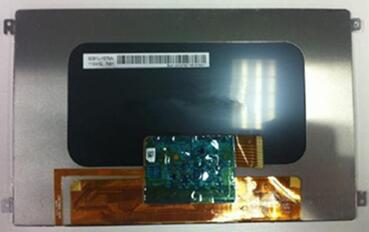

TFT LCDLG 7.0 inch HD TFT LCD LD070WS2-SL03 1024*600
Mouse over to zoom in
- Product 151/374
-
Brand: LG Display
Model: LD070WS2-SL03
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 WSVGA
Configuration: RGB Vertical Stripe
Surface: Antireflection
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 40 (Max.)(Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: IPS, Normally Black, Transmissive
Support Color: 262K / 16.7M
Lamp Type: 7S3P WLED, Without Drive
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 8-bit) + SPI, 30 pins, FPC
Power Supply: 3.3V (Typ.)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: All MID UMPC Panel, All Pad & Tablet Panel
