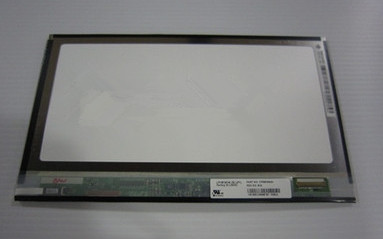

TFT LCDIPS 10.1" HD TFT LCD LP101WH4-SLP1 1366*768
Mouse over to zoom in
- Product 21/108
-
Panel Brand: LG Display
Panel Model: LP101WH4-SLP1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1366(RGB)*768, WXGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Antiglare, Clear Hard coating (3H)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 25 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Pad Panel
