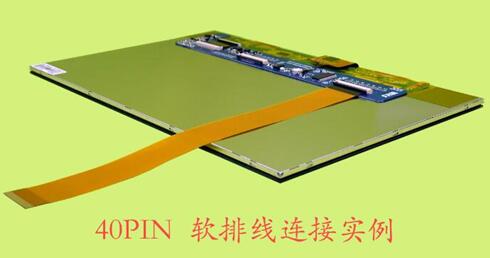

IPS 10.1" 40P RGB/LVDS LCD Capacitive Touch Screen
Mouse over to zoom in
Product 26/98

Price: US$99.00   Submit a wholesale Inquiry
Quantity:



Size: 10.1 inch IPS

LCD Type: TFT

Number of Dots: 1280(RGB)*800

LCD Dimension: 229.46*149.10*4.9mm

Active Area: 216.96*135.60mm

Dot Pitch: 0.1695*0.1695mm

PIN NO.: 40P

Display Color: 16.7M

Backlight: White LED

Color Pixel Arrangement: RGB Stripe

Polarizer Mode: Transmissive

Viewing Direction: Free (85/85/85/85)

Data Interface: RGB or LVDS interface

CTP Interface: I2C interface

Brightness: 200 (typ.)

Contrast Ratio (CR): 500:1

NTSC (Color gamut): 60%

Backlight Voltage: 9.6V  (typ.)

Backlight Current: 200mA  (typ.)

Operating Temp.: -10 ~ 60 degree

Storage Temp.: -20 ~ 70 degree

ROSH



CTP Characteristics

CPT Structure Type: Cover Glass + ITO Glass (G+G)

Resolution: 1280*800

Surface Hardness: ≥ 6H

Transparency: > 86%

Interface Type: I2C

I2C Slave Address (7bit): 0x14 or 0x5D

Support Point: 10

Supply Voltage: 3.3V
