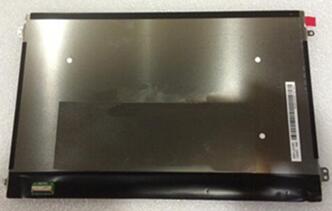

TFT LCDLG IPS 10.1" HD TFT LCD LP101WX2-SLP1 1280*800
Mouse over to zoom in
- Product 23/108
-
Panel Brand:
Panel Model: LP101WX2-SLP1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Glare (Haze 0%)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 35 (Typ.) (Tr/Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Pad Panel
