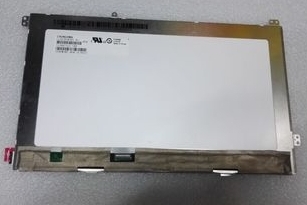

TFT LCDCPT 10.1 inch TFT LCD CLAA101WJ03 XG 1366*768
Mouse over to zoom in
- Product 24/108
-
Panel Brand: CPT
Panel Model: CLAA101WJ03 XG
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1366(RGB)*768, WXGA
Display Mode: HFFS, Normally Black, Transmissive
Active Area: 223.341*125.568 mm
Outline: 234.93*139.17*2.3 mm
Surface: Hard coating
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 600:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 30 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S6P WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.3V (Typ.)
Application: All Pad, Tablet Panel
