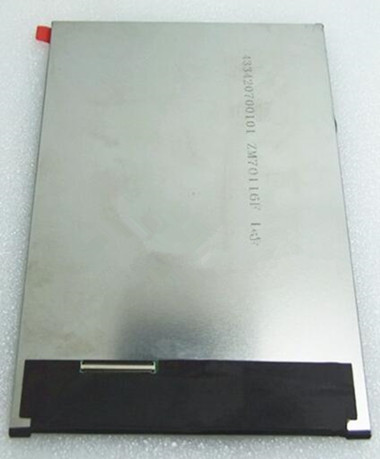

TFT LCD7" TFT LCD HE070IA-04F 800*1280 WXGA 20001457-10
Mouse over to zoom in
- Product 164/374
-
Panel Brand: CHIMEI INNOLUX
Panel Model: HE070IA-04F
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*1280, WXGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Hard coating
Brightness: 0 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 50 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: No B/L
Signal Interface: LVDS (1 ch, 6-bit)
Input Voltage: 3.3/8.8/-7.0/22V (Typ.) (VDD/AVDD/VGH/VGL)
RoHS
Application: All Pad Panel
