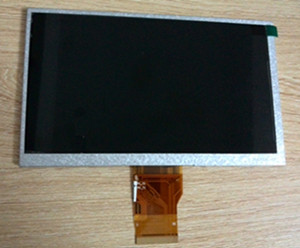

TFT LCDTIANMA 7 inch 50P TFT LCD Screen TM070RDH25
Mouse over to zoom in
- Product 165/374
-
Brand: TIANMA
Model: TM070RDH25
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 3S6P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 50Pin Parallel RGB (1 ch, 8-bit), FPC
Power Supply: 3.3/12.5/22/-7.0V (Typ.) (DVDD/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
