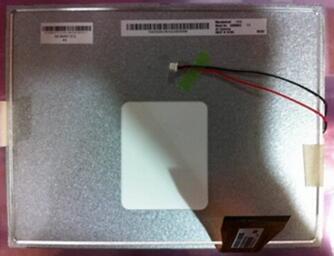

TFT LCDAUO 8.0 inch TFT LCD A080SN01 V8 SVGA 800*600
Mouse over to zoom in
- Product 49/121
-
Panel Brand: AUO
Panel Model: A080SN01 V8
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit+ Dithering)
Response Rime: 4/16 (Typ.) (Tr/Td)
Viewing Angle: 70/70/60/65 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 3S8P WLED
Signal Interface: TTL (1 ch, 6/8-bit)+SPI
Input Voltage: 3.3/11.68/15/-6.75V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
