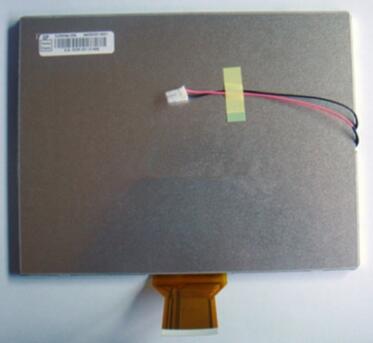

TFT LCD8.0 inch TFT LCD Screen EJ080NA-05A 800*600
Mouse over to zoom in
- Product 50/121
-
Panel Brand: CHIMEI INNOLUX
Panel Model: EJ080NA-05A
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit+ Dithering)
Response Rime: 10/15 (Typ.) (Tr/Td)
Viewing Angle: 70/70/50/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S9P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3/10.4/16.0/-7.0V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel
