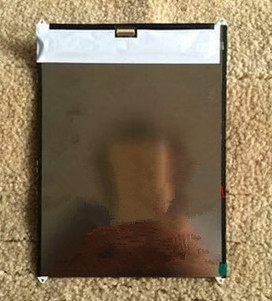

TFT LCDAUO 8.0 TFT LCD B080XAN02.0 KD097D1-35NA-A1
Mouse over to zoom in
- Product 51/121
-
Panel Brand: AUO
Panel Model: B080XAN02.0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.9 inch
Resolution: 768(RGB)*1024, XGA
Display Mode: AHVA, Normally Black, Transmissive
Surface: Hard coating
Brightness: 300 cd/m2 (Typ.)
Contrast Ratio: 600:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime:25 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 4S5P WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.7V (Typ.)
RoHS
Application: All Pad Panel
