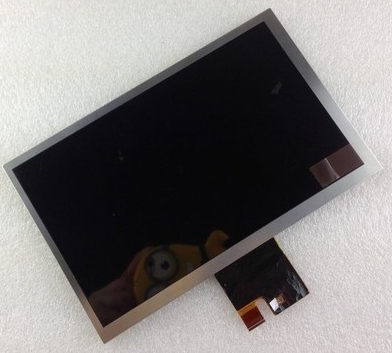

TFT LCD7.0 inch TFT LCD Panel BA070WS1-200 1024*600
Mouse over to zoom in
- Product 236/374
-
Panel Brand:
Panel Model: BA070WS1-200
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface: (Haze 0%), Hard coating (3H)
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 16 (Typ.) (Tr+Td)
Viewing Angle: 75/65/75/75 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S6P WLED
Signal Interface: LVDS (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All MP4 PMP Panel / All Pad, Tablet Panel
