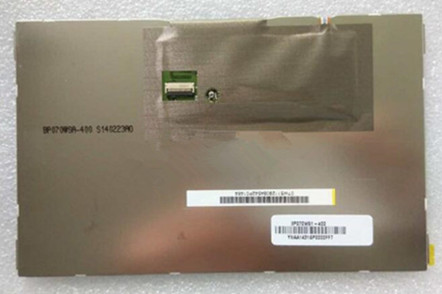

TFT LCDBOE 7.0 inch TFT LCD Panel BP070WS1-400 1024*600
Mouse over to zoom in
- Product 237/374
-
Panel Brand: BOE
Panel Model: BP070WS1-400
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: ADS, Normally Black, Transmissive
Surface: Glare (Haze 0%), Hard coating (3H)
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 900:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 30 (Typ.) (Tr+Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5S4P WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.7V (Typ.)
RoHS
Application: All Pad, Tablet Panel
