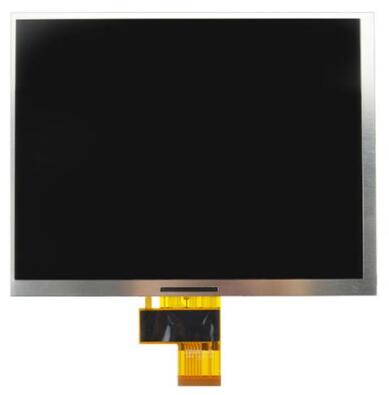

TFT LCD8.0 inch TFT LCD EE080NA-04C 32001014-01 1024*768
Mouse over to zoom in
- Product 80/121
-
Panel Brand: CHIMEI INNOLUX
Panel Model: EE080NA-04C
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 1024(RGB)*768, XGA
Display Mode: TN, Normally White, Transmissive
Surface: Hard coating
Brightness: 0 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit + FRC)
Response Rime: 25 (Typ.) (Tr/Td)
Viewing Angle: 75/75/75/75 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type:
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3/11.8/22/-7V (Typ.) (DVDD/AVDD/VGH/VGL)
RoHS
Application: All Netbook PC Panel
